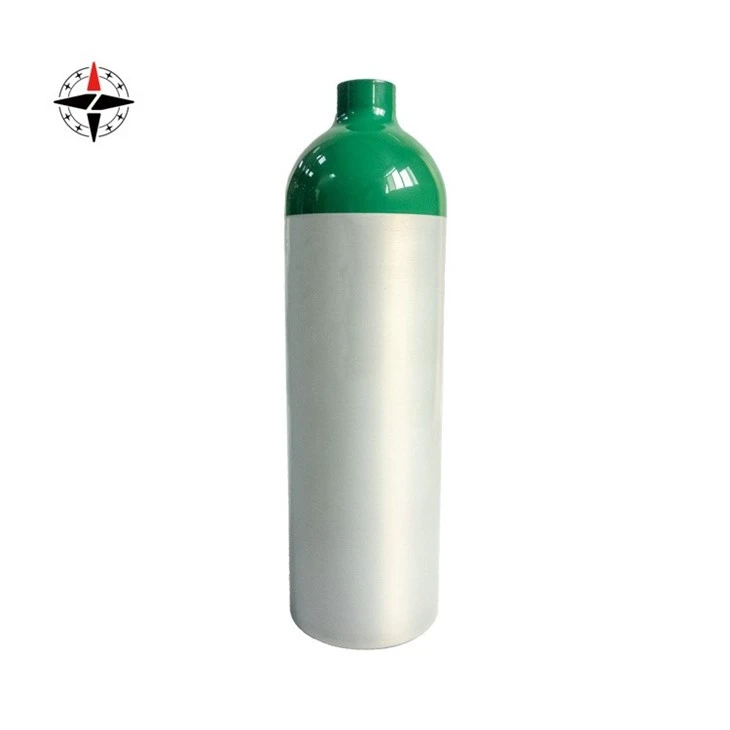

DOT medical 4.55L Aluminium oxygen gas cylinder is produced from high strength aluminum alloy 6061-T6 in accordance with the U.S. Department of Transportation DOT 3AL and Transport Canada TC 3ALM requirements. Aluminum cylinders are seamless and about 40% lighter than steel.
It is use for home oxygen therapy, emergency medical services(ems),pre- hospital care and hospitals, nursing homes,clinic supply and medical institutions.
Mid-star is a high-quality supplier in the field of seamless aluminum alloy gas cylinders. We are not only cylinder supplier, but also the first-rate service provider. We have been making great effort to achieve this win-win project and sincerely hope you can join us. All of our products have been strictly inspected before shipment. CE/DOT/TUV/MSDS/ ISO9001 certification, our products have attained, and they're based on ISO7866 or GB11640.
|
Model |
Capacity(Liter) Oxygen/Water |
Service Pressure Bar/Psi |
Outer Diameter mm/in |
Length(no valve) mm/in |
Weight(no valve) kg/1lbs |
||||
|
M2 |
40 |
0.3 |
153 |
2216 |
63.5 |
2.5 |
145 |
15.7 |
0.3/0.6 |
|
M4/ A |
113 |
0.7 |
153 |
2216 |
81.5 |
3.2 |
221 |
8.7 |
0.7/1.5 |
|
M6/ B |
165 |
1.0 |
153 |
2216 |
51.8 |
3.2 |
300 |
11.8 |
1.0/2/3 |
|
ML6 |
165 |
1.2 |
139 |
2015 |
111 |
4.4 |
198 |
7.8 |
1.3/2.9 |
|
ML7 |
195 |
1.4 |
139 |
2015 |
111 |
4.4 |
231 |
9.1 |
1.5/3.2 |
|
M9/ C |
155 |
1.7 |
139 |
2015 |
111 |
4.4 |
277 |
10.9 |
1.7/3.7 |
|
MD |
425 |
2.9 |
139 |
2015 |
111 |
4.4 |
424 |
16.4 |
2.4/5.4 |
|
M22 |
597 |
3.9 |
153 |
2216 |
133 |
5.2 |
414 |
16.3 |
3.7/8.0 |
|
ME |
680 |
4.6 |
139 |
2015 |
111 |
4.4 |
645 |
25.4 |
3.6/7.8 |
|
M60 |
1607 |
10.5 |
153 |
2216 |
184 |
7.25 |
582 |
22.9 |
10.1/22.3 |
There is a stamp marking on the shoulder of gas cylinder, which contains information such as service pressure, test pressure, water volume, cylinder weight, etc.
Attention:
1.The High Pressure Gas Cylinders should be stored in dry cool place, away from heat. And fireworks prohibited when use it. High Pressure Gas Cylinders shall not fall, impact and need to avoid exposure during transportation.
2.Pay attention to safety use because the gas cylinder is flammable and explosive.
PACKAGING DETAILS :
1. Standard exporting package
2. Cartons packed with wooden pallet
3. As per customized specifications such as logo or others
FAQs
Q: What is the capacity of the cylinder you can provide?
A: We can offer 0.21L- 10L cylinders as you required.
Q: Does your company provide OEM service?
A: Yes, we can develop and manufacture based on customers' demand.
Q: What is the delivery time?
A: Normally our delivery time is 20~30 days. But the detailed time is based on actual order quantity.
Q: What certificates do you own for cylinders?
A: We are authorized by TUV/GB/DOT standards.
Q: Can you tell me details about the cylinders packing?
A: Packed into carbon/color box, then pallets. Each cylinder is equipped with high quality packing which can make sure the security of the product during the transportation.
