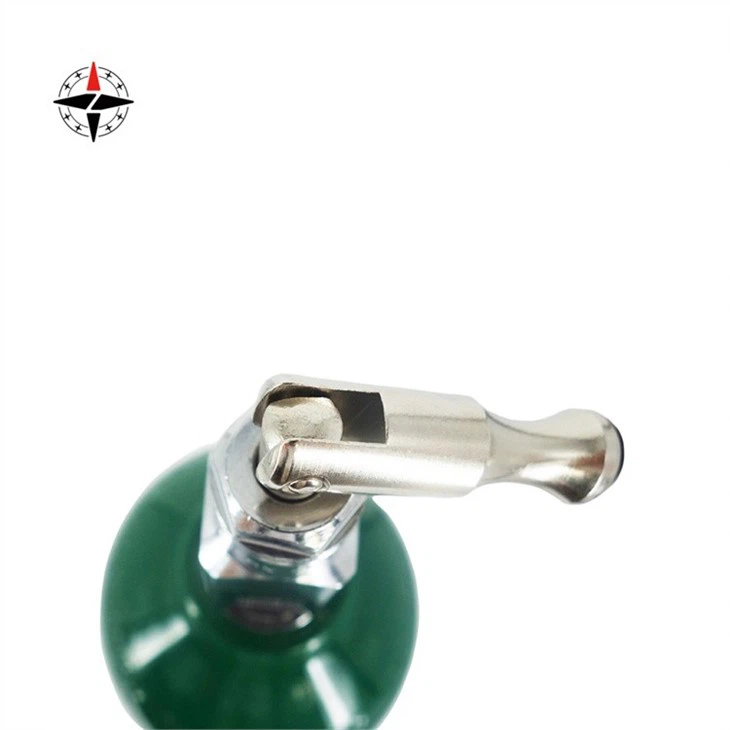

An M7 oxygen tank is a pressure vessel filled with oxygen for medical purposes. Oxygen cylinders can withstand high pressure. An m7 oxygen tank has a density of about 98%, whereas an oxygen concentrator produces oxygen at a concentration of about 90-95%. The distinction between the two has little bearing on the user. However, some users report that when using an oxygen cylinder, their oxygen delivery efficiency is higher than when using an oxygen concentrator, which is related to the flow rate due to pressure.
Specifications
Drawing No. | MS-111-232-H-01 | |||
Outside Diameter | mm | 111 | ||
in | 4.37 | |||
Water Capacity | liters | 2.73 | 3.9 | 5.07 |
lbs | 6.02 | 8.60 | 11.18 | |
Length | mm | 420 | 570 | 720 |
in | 16.5 | 22.4 | 28.3 | |
Weight | kgs | 2.5 | 3.3 | 4.0 |
lbs | 5.5 | 7.3 | 8.8 | |
Service Pressure | bar/psi | 139/2015 | ||
Test Pressure | bar/psi | 232/3364 | ||
Material | AA6061 | |||
Features
Aluminum oxygen cylinders are lighter in weight than stainless steel cylinders and have several advantages:
Flat bottom;
Vertical storage;
Corrosion resistant (no rust)
Applications
A sufficient supply of oxygen can help the patient's physical function.
The oxygen supply improves the function of all the patient's organs by compensating for lung function and adequately restoring oxygen levels in the blood, resulting in quick relief of symptoms and a better quality of life for the patient: the patient will be stronger, louder, walk farther, able to climb higher stairs, no more panting, eat well, sleep soundly, and feel refreshed. Patients' brains work more efficiently, and they are less prone to memory problems, inattention, and mood swings.
Testing&Inspection
National traffic management departments such as the US Department of Transportation and the Canadian Department of Transportation require regular internal and external testing of compressed gas cylinders to ensure the safety of gas cylinders during use. Since many compressed gases are flammable and explosive, any defect in the high-pressure gas cylinders that hold them can be catastrophic.
Mid-Star is a high-tech company in Shangyu, China, that leads the market for aluminum alloy seamless gas cylinders. We serve the industrial gas, food and beverage, fire protection, diving, and other industries, and we manufacture high-quality aluminum alloy seamless gas cylinders that are environmentally friendly and recyclable.
FAQs
Q:How do I get oxygen cylinders?
A:For an oxygen cylinder request, you must submit a quote request or contact our sales department.
Q:What are the side effects of pure oxygen?
A:Oxygen toxicity caused by excess oxygen can be fatal to the lungs and other organs. Long-term use of high oxygen concentrations can exacerbate free radical formation and lead to lung damage.
