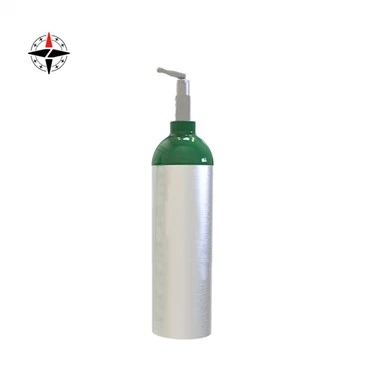

Midstar medical oxygen bottle
| Specially designed for clinics, ambulance fleets, rehabilitation centers and elderly care institutions
Provide reliable and lightweight medical oxygen storage solutions for community clinics, ambulance fleets, rehabilitation centers and elderly care institutions. Solve the problems you face in scenarios such as small medical facility standby, pre-hospital rescue and inter-facility patient transfer where continuous oxygen access is critical. Holding ISO 7866 and DOT-3AL international certifications, it supports bulk purchasing and OEM customization of cylinder colors, institutional logos and packaging.
Safety and Compliance
Each gas cylinder undergoes 100% water pressure testing, ultrasonic flaw detection and air tightness testing, and is accompanied by a traceable third-party certification report to ensure absolute safety.
Lightweight design
Compared with traditional gas cylinders, the weight is reduced by 30% to 40%, significantly lowering logistics costs and the operational load on workers.
Deep customization service
Supports OEM/ODM based on your filling gas, production line interface, and brand logo, including all-round customization in color, valves, size and packaging.
One-stop support
We offer full-cycle services ranging from technical selection consultation, compliance guidance to after-sales maintenance. Our professional engineering team is your strong backing.
| Drawing No. | Outside Diameter | Water Capacity | Length | Weight | Service Pressure | Test Pressure | Specification | ||||
| mm | in | liters | lbs | mm | in | kgs | lbs | bar/psi | bar/psi | ||
| MS-89-250-H-01 (0.9~2.3)L | 89 | 3.5 | 0.9 | 1.98 | 268 | 10.55 | 1.2 | 2.65 | 166.6/2415 | 250/3625 | TPED |
| 1.5 | 3.31 | 373 | 14.69 | 1.6 | 3.53 | ||||||
| 2.3 | 5.07 | 559 | 22.01 | 2.3 | 5.07 | ||||||
| MS-89-300-H-01 (1~2.2)L | 89 | 3.5 | 1 | 2.2 | 282 | 11.1 | 1.4 | 3.09 | 200/2900 | 300/4350 | |
| 1.2 | 2.65 | 326 | 12.83 | 1.59 | 3.51 | ||||||
| 1.5 | 3.31 | 393 | 15.47 | 1.95 | 4.3 | ||||||
| 2 | 4.41 | 501 | 19.72 | 2.38 | 5.25 | ||||||
| 2.2 | 4.85 | 545 | 21.46 | 2.58 | 5.69 | ||||||
Material: High-quality aluminum alloy 6061-T6
Stamp markings: According to standards, additional markings are available upon request;
Surface treatment: brushed body with clear powder coating and green neck;
Threads: M25x2, 3/4-16UNF-2B, 25E, other threads available on request;
Valve: CGA 870
Other Customization Options: Logos, Graphics, Packaging, Accessories (Nasal Cannula, Mini Oxygen Regulators);
OEM/ODM customization capability - integrating products into your brand and system
Our customized services cover four major dimensions
• Customized specifications: Volume, diameter, height, valve opening type - within the safety standard range, adjust as needed
• Customized appearance: Bottle body color, shoulder color matching, enterprise LOGO, product label - Let the gas cylinder become your mobile billboard
• Customized identification: Laser engraving, screen printing, permanent coding - achieving full life cycle traceability management
• Customized packaging: Exclusive packaging solutions, pallet specifications, and shipping mark designs - tailored to your warehousing and logistics systems
From sample confirmation to batch delivery, we offer one-on-one dedicated account manager coordination to ensure that every customized detail is precisely implemented.
Three major application scenarios for medical oxygen bottle
Scene One: Clinic & Small‑scale Medical Institution Standby Oxygen Source
In community clinics, dental centers and private medical institutions, complete central piped oxygen supply systems are often too costly to deploy. Relying on scattered steel oxygen cylinders brings multiple hidden troubles: heavy weight for staff to move, inconsistent product quality, frequent cylinder replacement interrupting diagnosis and treatment work. During peak consultation periods, insufficient oxygen reserve may cause risks for patients with respiratory distress. Midstar medical oxygen bottles adopt seamless 6061‑T6 aviation‑grade aluminum alloy material with obvious weight reduction compared with steel counterparts, realizing single‑person handling and quick deployment. They can be placed beside consultation tables and treatment areas as independent standby oxygen sources. Unified specifications simplify warehouse inventory management for medical institutions. Anti‑misoperation valve design guarantees operational safety for rotating medical staff, meeting daily oxygen‑therapy needs of small‑size medical facilities.
Scene Two: Ambulance & Inter‑facility Patient Transfer
During pre‑hospital emergency rescue and cross‑hospital patient transfer, stable mobile oxygen supply is the core guarantee for critically‑ill patients. Traditional steel cylinders are excessively heavy for ambulance crews, and vehicle jolts in transit may bring hidden dangers for installation and fixation. Once oxygen supply is interrupted during transfer, it will directly threaten patient life safety. Midstar medical oxygen bottles feature lightweight aluminum‑alloy construction, which eases loading, fixing and on‑site operation inside limited ambulance compartments. The mature valve‑and‑regulator matching delivers stable and adjustable oxygen flow throughout the whole transfer journey. Standardized interface supports fast connection of oxygen masks and nasal cannulas. Uniform serial‑number marking facilitates asset management for ambulance fleets and medical‑gas filling stations, ensuring continuous, reliable oxygen support for all pre‑hospital and inter‑hospital rescue missions.
Scene Three: Rehabilitation Centers, Nursing Homes & Institutional Home‑Care Projects
In rehabilitation centers, chain nursing homes and institutional home‑care service projects, large groups of COPD and elderly patients require long‑term regular oxygen therapy. Heavy steel cylinders bring huge handling burden for nursing teams. Mixed‑specification cylinders lead to confusing asset counting, and mis‑operation by non‑professional caregivers may trigger safety hazards. Midstar medical oxygen bottles are lightweight and easy to operate. The clear flow‑rate adjustment structure lowers operation barriers for nursing personnel without rich professional experience. Customized cylinder color, institutional logo and engraved serial numbers are supported for unified asset identification across multiple care buildings and service sites. Suitable for bulk procurement and fleet‑style management by pension groups and home‑care operators, helping institutions build stable oxygen‑therapy reserves for long‑term rehabilitation scenarios.
Full-process support from concept to mass production: From drawing review, prototype making to mass production and quality inspection, we offer one-stop services, significantly shortening your product launch cycle.
Flexible cooperation based on demand: Whether it's a small-batch trial order or a long-term large-scale framework purchase, we can offer competitive tiered pricing and stable inventory planning.
Cross-industry application expert: Our gas cylinder solutions have been successfully applied in fire-fighting equipment, medical devices, diving equipment and the beverage industry. We are glad to apply our cross-industry experience to solve your specific challenges.
Regarding packaging
In order to deliver our products to you in the condition in which they were sent, we use strict, strong, efficient and environmentally friendly packaging methods.
Our standard packaging method for our products is to cover them with plastic bags, put them into cartons, then place the cartons on pallets and wrap them tightly with stretch film to ensure that the cylinders do not collide with each other during transportation. Other packaging methods can be provided upon request.
Certification system of Midstar
• U.S. market: DOT-3AL (U.S. Department of Transportation Standard for Aluminum Alloy Gas Cylinders)
• EU market: TPED /EU + PED /EU (Dual Directive compliance)
• International standard: ISO 7866 (Global Technical Benchmark for Gas Cylinder Industry)
• UK market: BS 5045-8 (UK National Standard)
• Chinese market: GB/T 11640 (National Recommended Standard of China)
All certifications are reviewed and issued by international authoritative institutions to ensure the authenticity and traceability of compliance documents.
Professional service commitment
We offer comprehensive support, not just products.
Bulk purchasing plan: Based on your annual purchasing volume, we offer tiered preferential prices and flexible delivery plans.
Customized services: Supports institutional customization of gas cylinder colors and markings, facilitating asset identification and management.
Training and Guidance: Provide training on product usage and safety regulations for your team.
After-sales service and Inspection: We offer regular safety inspection services for gas cylinders or assist in contacting qualified local inspection institutions.
Call to action
To the Procurement Managers of Institutions, if you are evaluating or updating equipment, we can provide you with:
Free sample experience: Test the lightness and reliability of the product in person.
Contact our B2B sales team immediately to get a personalized quotation and solution.
FAQs
Q: What are the prices? Can it be cheaper?
A: The price depends on the item you need (shape, size, quantity). The final quote, based on the full description of the item received.
Q: Can you produce according to customer' design?
A: We can produce products according to customers' needs.
Q: Why your are more worthy of our choice?
A: We are a factory with excellent equipment and high quality control system, our factory price is more competitive, high quality and fast delivery, our service is also the best 24 hours online, quick reply to your request.
